IndARC multisensor mooring

India’s first multi-sensor mooring was deployed on 23 July 2014 at 78^o 56' N and 12^o E in the inner Kongsfjorden where the depth is ~180 m.
The mooring consists of several sensors located at various depths as shown below

Depth

Sensors

15m

25m

30m

50m

75m

100m

120m

Conductivity-Temperature-Depth (CTD), Flourometer, Dissolved Oxygen (DO), Nutrient, Photosynthetically Active Radiation (PAR)

Single point current meter

CTD, Flourometer, DO, Nutrient, PAR

CTD

CTD, upward looking 300KHz ADCP

CTD

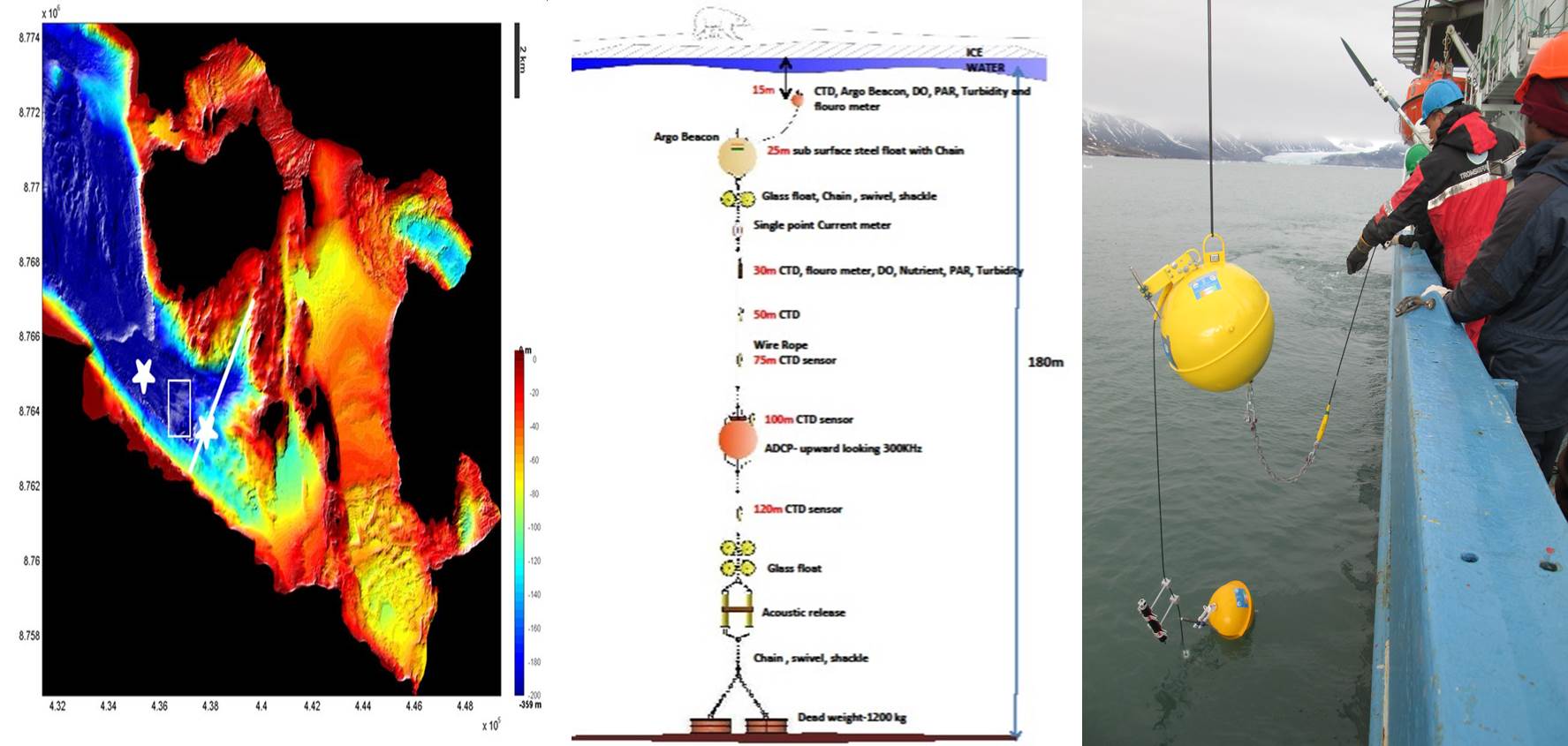

Location (left), design (middle) and deployment (right) of IndARC-I multi-sensor mooring

A team of Indian scientists from NCAOR and NIOT retrieved IndARC-I on 15 July 2015 and collected the data of last one year (July 2014- May 2015).

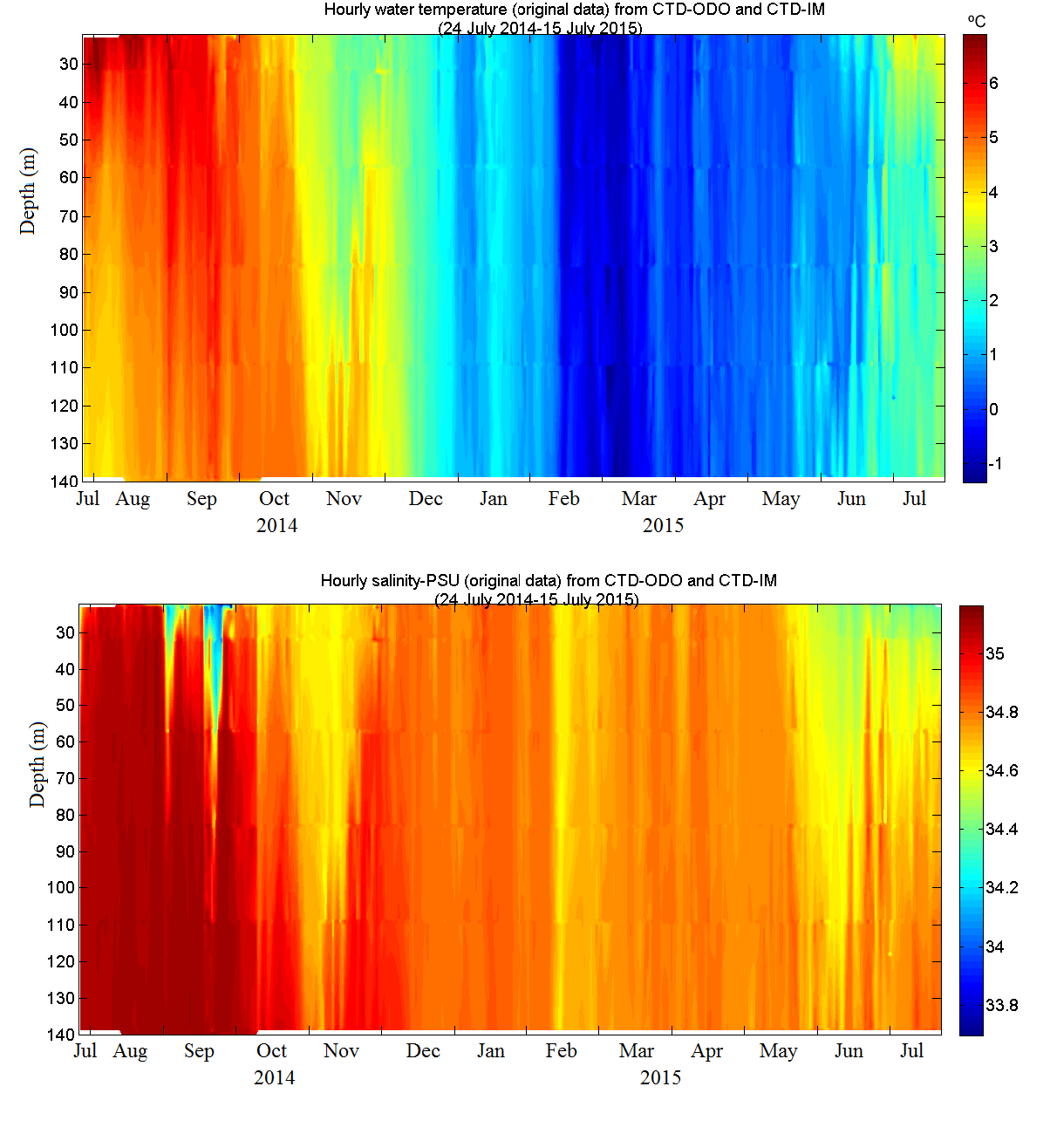

Temperature (^oC) and salinity (psu) profile at the Kongsfjorden using CT sensors from IndARC-I during 24 July 2014 to 15 July 2015.

IndARC-II was redeployed for another one year at the same location at Kongsfjorden on 19 July 2015 with a couple of newly added sensors (as shown below) to measure fluorescence, photosynthetically active radiation, nitrate and ambient noise. The sensors and their respective depths are as given below:

Sensor	Depth (m)
SBE 37 ODO-IMP	23
PAR – FLNTUS	24
Ambient Noise Measurement System & Transducer	30
SBE 37 ODO-IMP	33
PAR – FLNTUS	35
SATLANTIC - SUNA	37
Nortek Aquadopp	38
SBE 37 CTD IMP	55
SBE 37 CTD IMP	80
SBE 37 CTD IMP	105
SBE 37 CTD IMP	145
SBE 37 CTD IMP	165
ADCP-300 KHz	175
